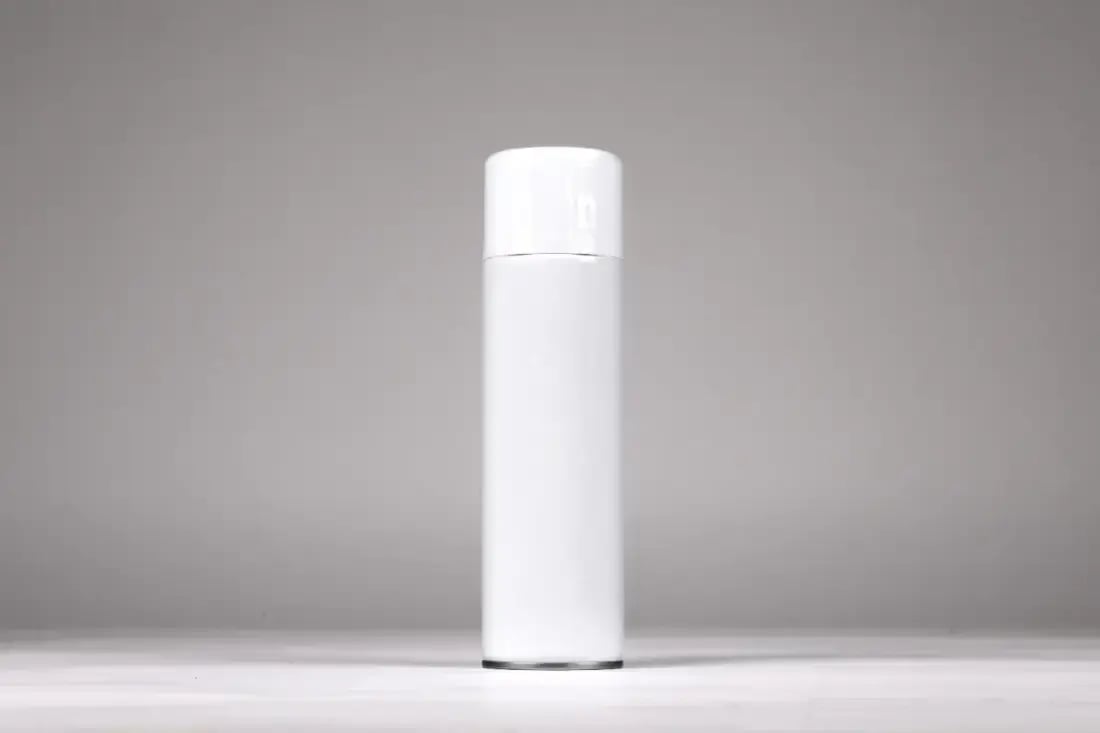

Aerosol
Precision spray, ready to work.
Lightweight pressurised cans for controlled, portable application, ideal for touch-ups, edge work and jobs where a full canister is overkill.

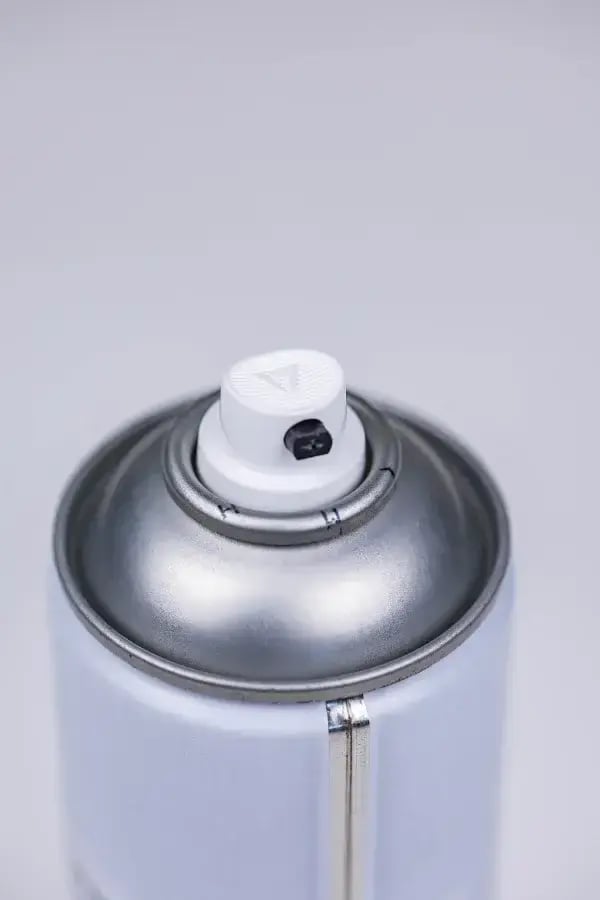

Valve and Actuator Types
Three valve types are available across both fill sizes. The valve sets the spray pattern and the rate at which adhesive is laid down.

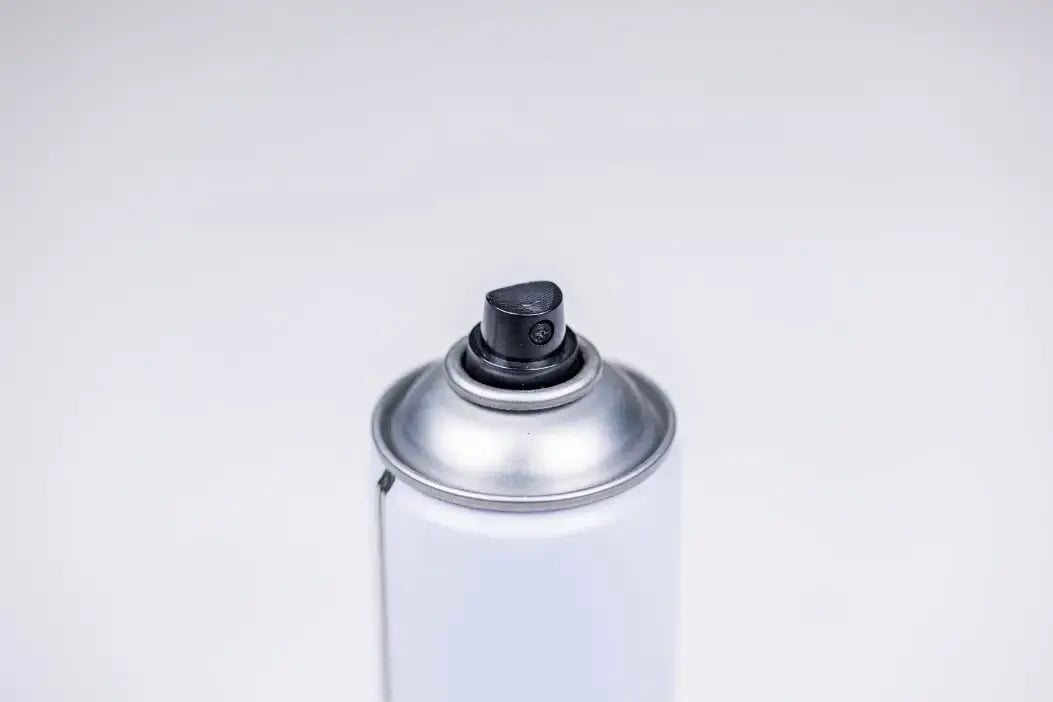

Fixed actuator & valve
DEFINITION
A non-adjustable actuator and valve system.
CHARACTERISTICS
-
No spray pattern width adjustment
-
No spray orientation adjustment
-
Fixed spray output at all times
SUMMARY
A completely static system with no user-controlled variables.
Fixed actuator & valve (rotatable insert)
DEFINITION
A fixed actuator and valve system that includes a rotatable insert to change spray orientation only.
CHARACTERISTICS
-
No spray pattern width adjustment
-
Spray orientation can be adjusted (horizontal or vertical) via rotatable insert
-
Spray width/output remains fixed
SUMMARY
Functionally a fixed system, with the only variable being spray direction (orientation).

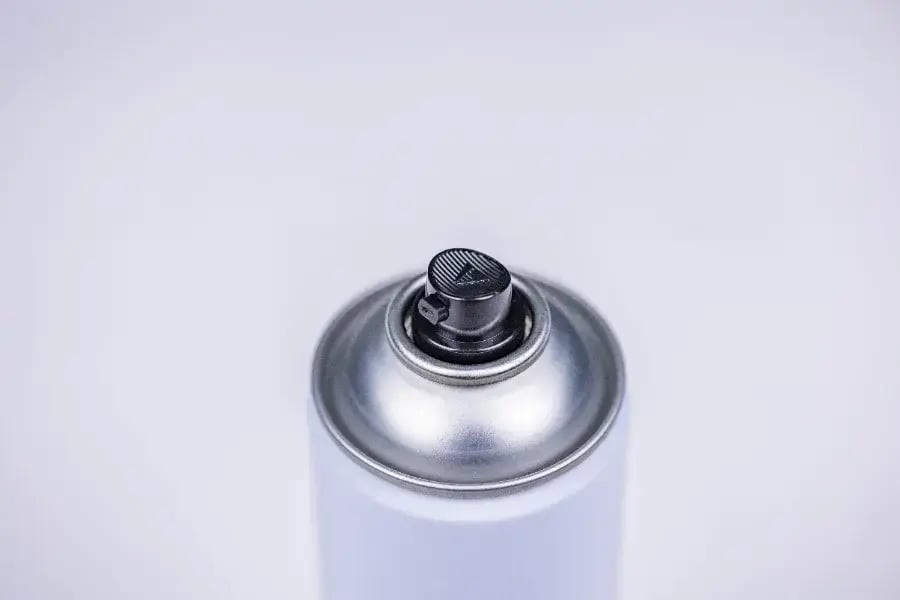

Variable actuator & valve
DEFINITION
A fully adjustable actuator and valve system allowing control over both spray width and orientation.
CHARACTERISTICS
-
Adjustable spray pattern width (e.g. High / Medium / Low settings via twist mechanism)
-
Spray orientation can be adjusted (horizontal or vertical) via rotatable insert
-
Full user control over spray output characteristics
SUMMARY
A fully variable system offering both width and directional control.
Metal aerosol cans can be recycled through suitable waste streams once fully empty and safely depressurised.
Metal aerosol cans can be recycled through suitable waste streams once fully empty and safely depressurised.

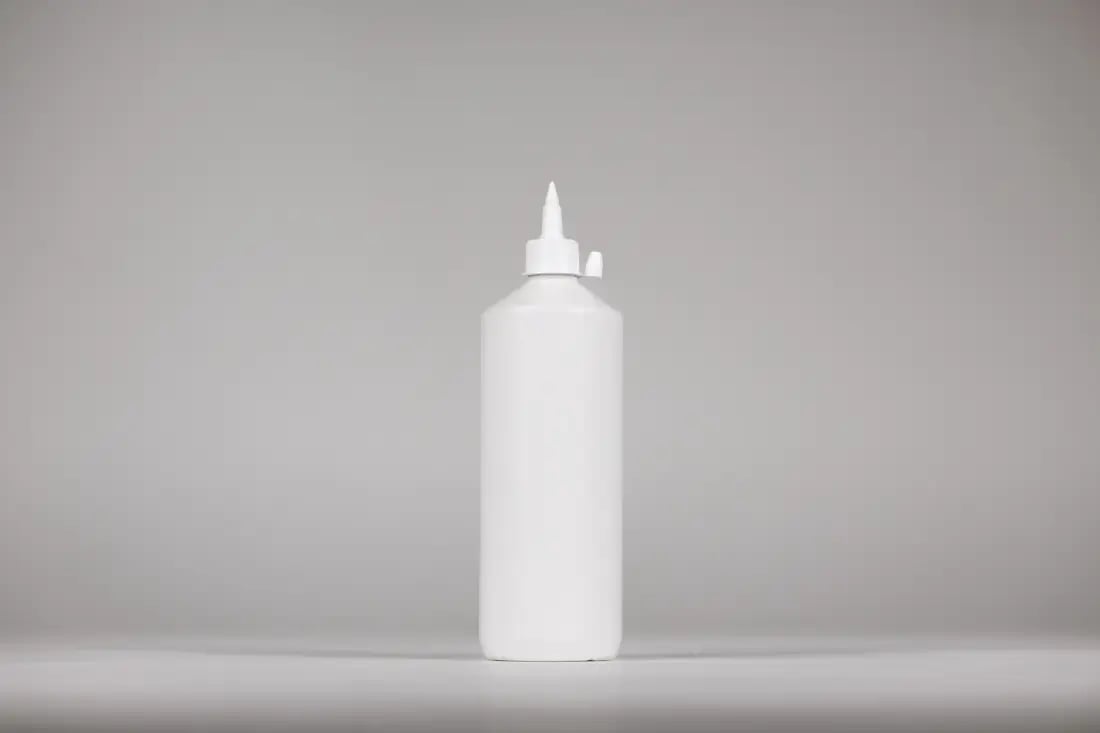

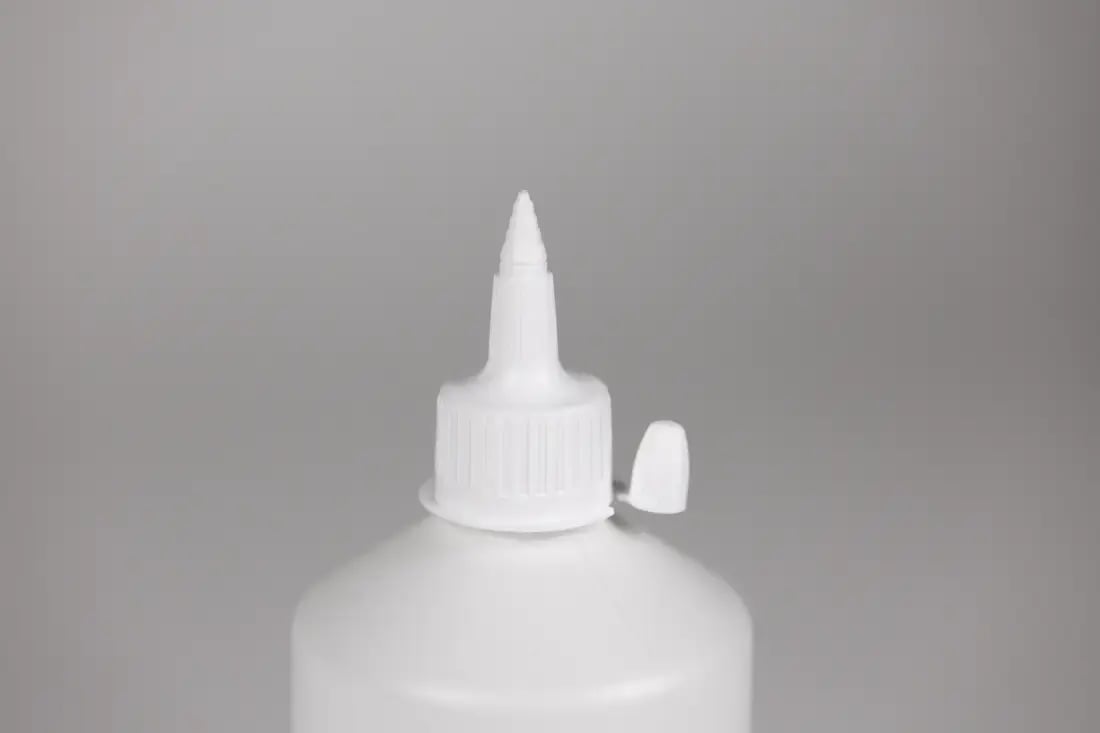

Bottle
Everyday sizes for bench and site.
Squeeze and pour bottles for precise, low-waste dispensing of water-based and polyurethane products on the bench or in the van.
Lightweight bottles reduce transport weight and may be recyclable once fully emptied.

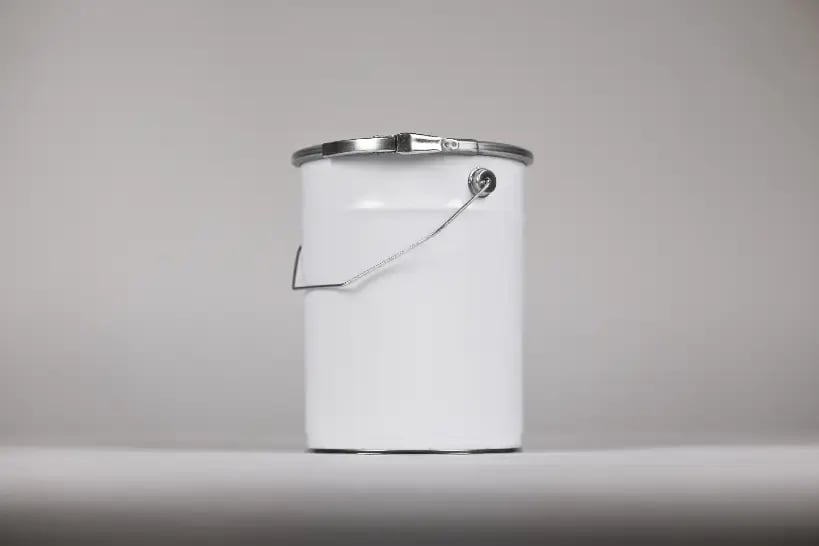

Buckets
Trowel- and roller-ready volumes.
Open pails for trowel- and roller-applied adhesives and coatings, sized for a working day without wastage.
Durable buckets protect the product and can often be recycled through appropriate waste routes once empty.
Durable buckets protect the product and can often be recycled through appropriate waste routes once empty.
Durable buckets protect the product and can often be recycled through appropriate waste routes once empty.
Durable buckets protect the product and can often be recycled through appropriate waste routes once empty.

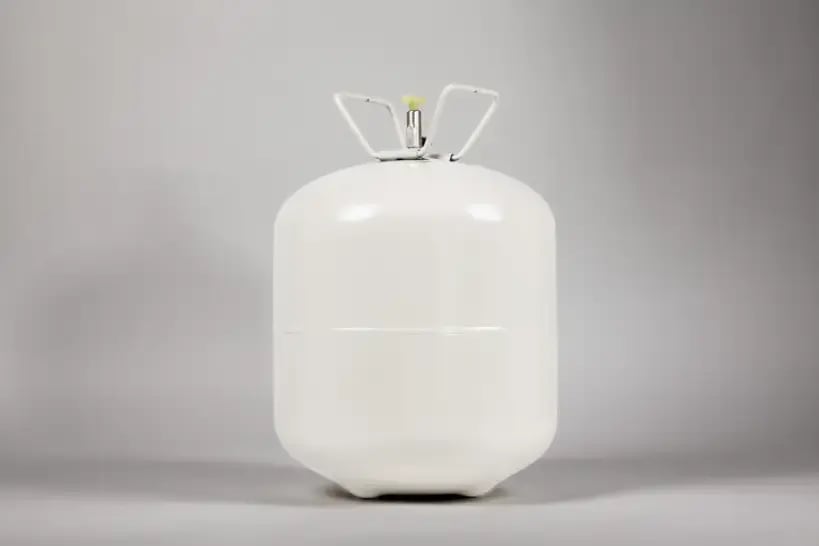

Canister
High-output spray for pace and scale.
Pressurised intermediate canisters that deliver fast, even coverage for high-volume flooring, roofing and upholstery work, no compressor, no mess.
Steel canisters support efficient bulk application and can be recycled once empty and safely depressurised.
Steel canisters support efficient bulk application and can be recycled once empty and safely depressurised.
Steel canisters support efficient bulk application and can be recycled once empty and safely depressurised.

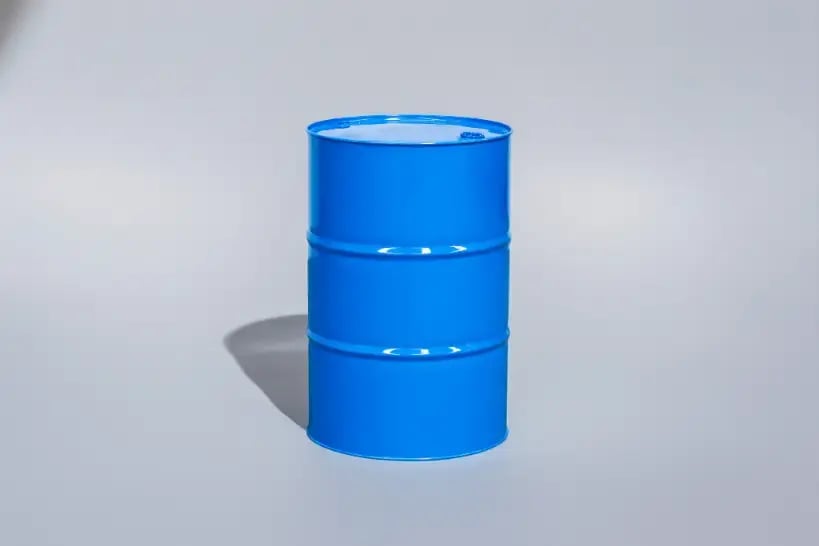

Drum
Volume supply for steady production.
Sealed drums for medium-to-high volume supply where pumped or decanted dispensing keeps a line running.
Drums reduce packaging per litre and may be reconditioned or recycled through approved waste partners.
Drums reduce packaging per litre and may be reconditioned or recycled through approved waste partners.

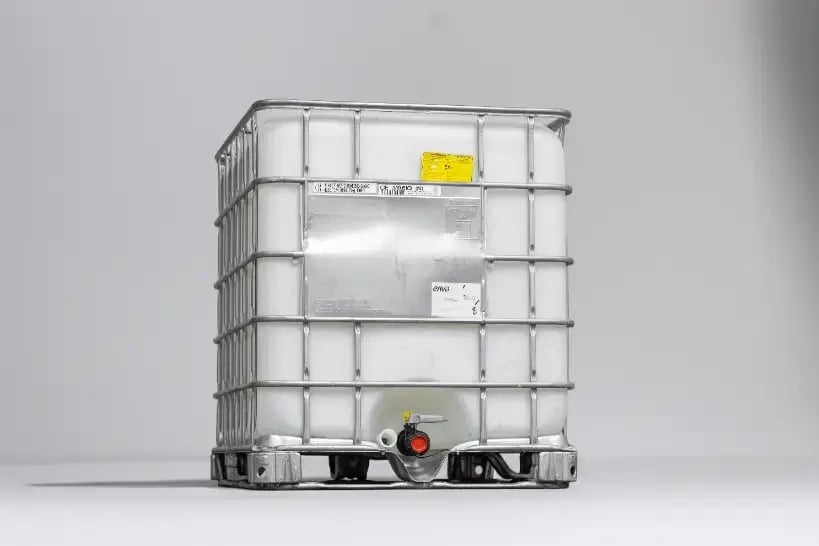

IBCs
Bulk supply, engineered for flow.
Intermediate bulk containers for continuous, high-volume liquid supply, built for automated dispensing and minimal changeover downtime.
Reusable and reconditionable IBCs help reduce single-use packaging for high-volume supply.

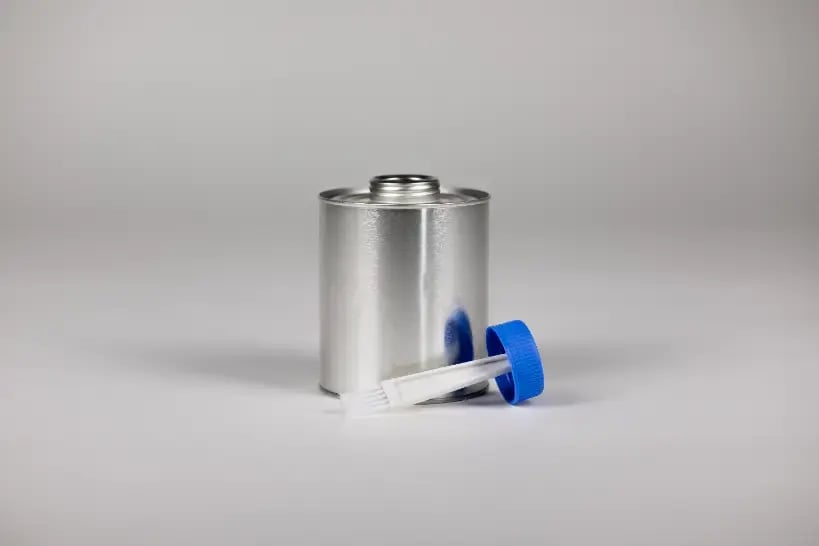

Tins
Classic sealed tins for brush and bulk.
Lever-lid and screw-cap tins for brushable adhesives and coatings, from sample sizes to contractor volumes.
Metal tins can be recycled through suitable metal waste streams once completely empty.
Metal tins can be recycled through suitable metal waste streams once completely empty.
Spray Guns
Controlled application, every time.
Canister spray guns built for continuous production use. Professional, long-wand and aero-trigger bodies cover bench work, overhead work and touch-in, each matched to Vola canister and aerosol formats.

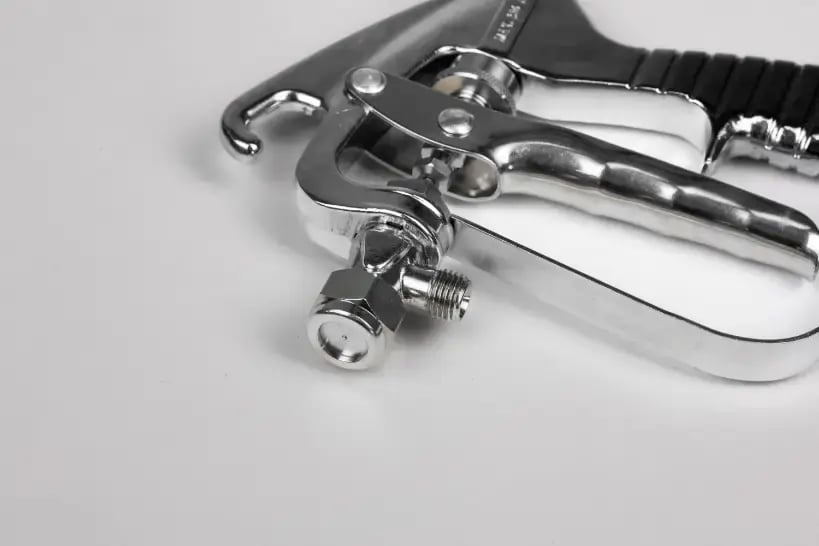

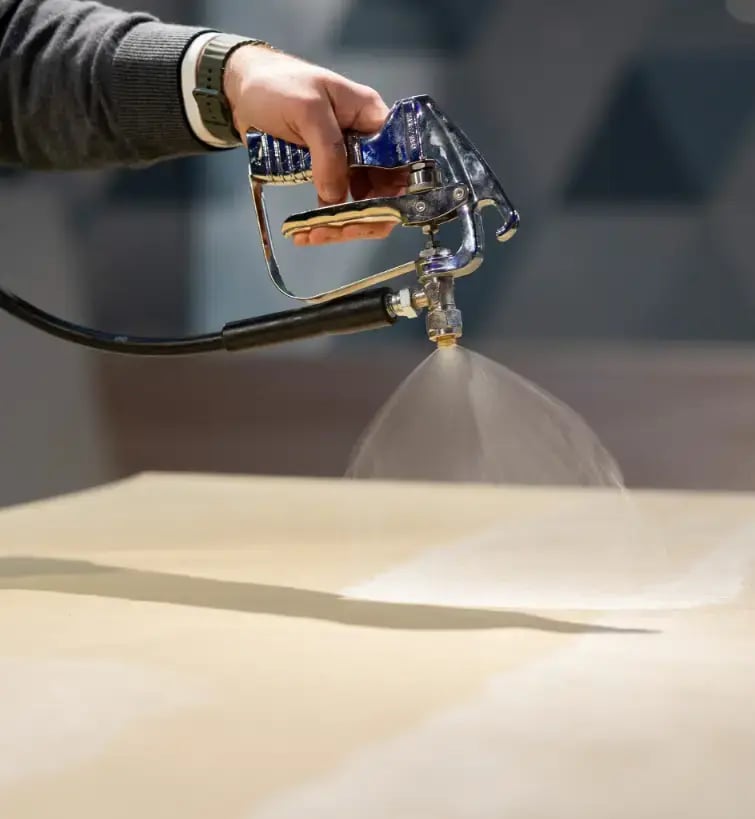

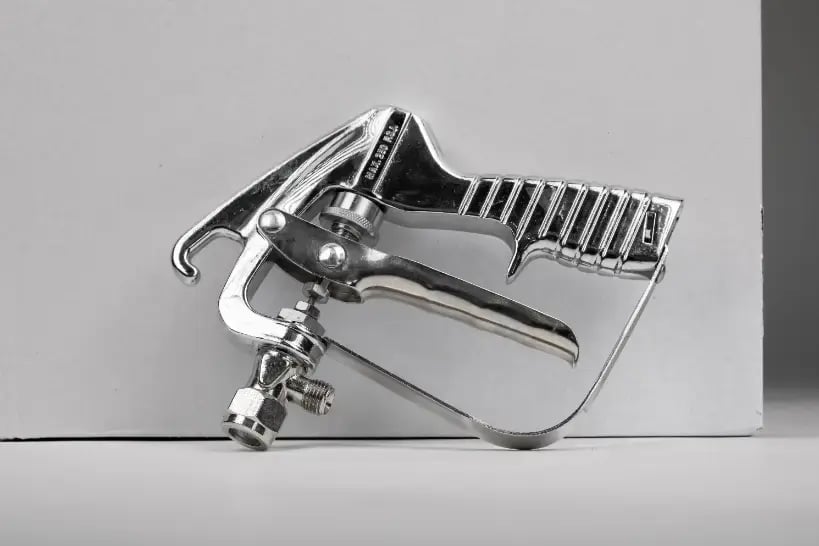

Professional Spray Gun
A canister spray gun built to hold its performance through sustained industrial use, suited to work from small-scale application through to major projects. Supplied with the gun tip of your choice.
Long Wand Spray Gun
The professional spray gun fitted with an extended wand, allowing adhesive to be applied at distance without stooping or working from height. Supplied with the gun tip of your choice.
Aero Trigger
A trigger handle that clips onto an aerosol can, replacing finger pressure on the cap with a full hand grip. Two steps to application: fit the trigger, then spray. It gives better control for precision work and takes the repetitive strain out of extended aerosol use.
Built for years of service, so replacement is infrequent.
Built for years of service, so replacement is infrequent.
Made of recyclable plastic.
Hoses
The link between canister and gun.
Braided and rubber hose assemblies in 4m and 8m lengths, with stainless steel, black rubber and polyurethane compatible options. Valved variants let you isolate the canister without breaking the line.
4M Black Rubber
A rubber-coated spray hose built for sustained industrial use. It stays flexible in service and resists the wear that shortens hose life. At 4m it suits work close to the canister.
8m Black Rubber
The same rubber-coated construction in an 8m length, holding its flexibility and durability under daily industrial use. The extra reach covers most application distances without repositioning the canister.
4m Stainless Steel Braided
A premium moisture-block hose corrugated with stainless steel for added durability, developed for crosslinking contact adhesives. At 4m it suits work close to the canister.
8m Stainless Steel Braided
The same stainless steel corrugated moisture-block construction in an 8m length, developed for crosslinking contact adhesives. The extra reach covers wider working areas from a single canister position.
4m Stainless Steel Braided C/W Valve
A stainless steel braided hose with an integral valve, for applications demanding higher durability and strength. The valve isolates the canister without breaking the line, so the assembly can be shut off between runs.
4m PU MB/HT
A polyurethane moisture-block, high-temperature hose specified where the chemistry or the working environment demands it. Built to hold its performance through sustained industrial use.
Long service life, and replaced as a single component rather than the whole assembly.
Long service life, and replaced as a single component rather than the whole assembly.
Long service life, and replaced as a single component rather than the whole assembly.
Long service life, and replaced as a single component rather than the whole assembly.
Long service life, and replaced as a single component rather than the whole assembly.
Long service life, and replaced as a single component rather than the whole assembly.
Gun Tips
Set the pattern, control the film.
Interchangeable UniJet® and Lechler tips covering fan width, output rate and material compatibility. Changing the tip changes the spray pattern without changing the gun.
UniJet® 8001 Brass
A wide, fast-application tip for covering area quickly where high volume is not a constraint. Recommended with the long-wand gun, and equally suited to a professional spray gun.
UniJet® 6501 Stainless Steel
A narrow fan spray for precision work on smaller surfaces, and well suited to pebble and web spray patterns. Compatible with most products and applications.
UniJet® 4001 Tip Stainless Steel
A narrow spray pattern for bonding small components, suited to fine pebble and mist sprays where added precision is required. Fits almost any canister.
Lechler 652.245.30 Brass
A premium brass tip developed for zero-flam (non-flammable) and mist spray products. Specified where those chemistries require a matched tip.
UniJet® 9501 Brass
A multipurpose tip giving a wide fan spray, suited to pebble and web patterns. Works with all guns, and the pattern can be narrowed on guns with width adjustment.
UniJet® Q-Tip
An extreme wide spray pattern for high-build web spray applications, typically used in insulation and fabric bonding where spread patterns over 700mm are required.
A consumable with minimal material content, changed rather than discarding the gun.
A consumable with minimal material content, changed rather than discarding the gun.
A consumable with minimal material content, changed rather than discarding the gun.
A consumable with minimal material content, changed rather than discarding the gun.
A consumable with minimal material content, changed rather than discarding the gun.
A consumable with minimal material content, changed rather than discarding the gun.
Rollers
Pressure where it counts.
Hand rollers for closing the bond after application. Triple and J-roller bodies suit sheet goods, seams and detail work across flooring, roofing and panel bonding.
Triple Roller
A straight-handle roller with the grip set above the roller head, giving extra reach and precise control over the pressure applied to the bond.
J Roller
A 75mm laminating roller with a cranked J-handle, designed to increase the pressure applied to the substrate. Supplied with a lifetime guarantee.
Lifetime guarantee on the J-roller, and roller heads replaceable on the triple roller.
Lifetime guarantee on the J-roller, and roller heads replaceable on the triple roller.
Trolleys
Move the canister with the job.
Wheeled canister trolleys that keep the adhesive supply alongside the operator, so a run is not interrupted to reposition the canister.
Quin M510-22 Canister Trolley
A wheeled trolley for the 22L canister, for shop and large field work where the adhesive supply has to move with the operator. It makes transport and use of the large canister straightforward on site.
Powder-coated steel construction, repairable and built to outlast many canisters.
Kick Off Kit
Everything you need to start bonding.
A complete adhesive system is more than a canister of glue. The Kick Off Kit supplies the tooling needed to get the full performance out of the range, at no additional cost on a first canister purchase of branded products.
Quin Global Kick Off Kit
All the essential tooling for bonding in one package: professional spray gun, hose, gun tip, roller and a Quin-branded ball. Supplied at no additional cost on a first canister purchase (branded products only).
Terms apply. For details, contact
customerservices.uk@quinglobal.com
One package rather than separate shipments, cutting transport and packaging.
